Description:
| ENGINE: | CG150 | ENGINE TYPE | SINGLE CYLINDER, AIR-COOLED, FOUR-STROKE |
| DISPLACEMENT: | 162CC | MAX. POWER: | 8.8/8000KW/R/MIN |
| MAX. TORQUE: | 11.3/6500N.M./RPM | IGNITION TYPE: | CDI |
| START SYSTEM: | ELECTRICAL/KICK | TRANSMISSION: | CHAIN DRIVE |
| MAX. SPEED: | 90KM/H | BRAKE: | FRONT DISC AND REAR DRUM |

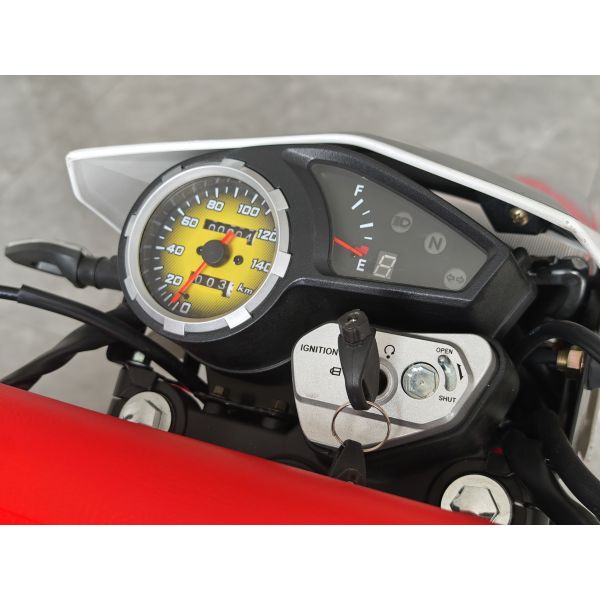

Brazil off-road 2010 model cover, CG150CC engine, Youli Keihin carburetor, maintenance-free battery, straight front shock absorber, single rear shock absorber without cradle, ordinary instrument, front and rear mesh wheels, deep tooth tires (front 3.00-21, rear 4.10-18), reinforced square tube flat fork, aluminum alloy muffler, front disc brake, rear drum brake, aluminum alloy rear handrail. Classic diamond rearview mirror.
Specifications:
| Item | Parameter |
| Dimensions (Length x Width x Height) | 2090×900×1230mm |
| Seat Height | 890mm |
| Wheelbase | 1360mm |
| Minimum Ground Clearance | 285mm |
| Maximum Load | 150kg |
| Steering Angle | 38 |
| Side Stand Tilt Angle | 13 |
| Ride Capacity | 2 Person |
| Dry Weight | 118kg |
| Fuel Tank Capacity | 11.5L |
| Front Tire Size | 90/100-21 |
| Rear Tire Size | 120/90-18 |
| Battery Size | 12V/6.5Ah |
| Engine Type | Single cylinder, air-cooled, four-stroke |
| Engine displacement | 162 |
| Bore x stroke | 62×53 |
| Compression ratio | 9.0:1 |
| Maximum speed | 90km/h |
| Start-up acceleration | 14S |
| Overtaking acceleration | 13S |
| Lubrication method | Pressure, Splash |
| Oil volume | 1.1L |
| Clutch type | Multi-plate wet clutch, manual |
| Ignition method | CDI |
| Spark plug | A8RTC |
| Transmission method | Chain drive |
| Final gear ratio | 15:43 |
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. Packaging Parameters:
A: The size of SKD is 1830×460×840mm, and a 40HQ container can hold 96 units.
The size of CKD is 1350×760×380mm, and a 40HQ container can hold 138 units.
Q6. Minimum Order Quantity:
A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.
Q7. After-sales Service:
We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
